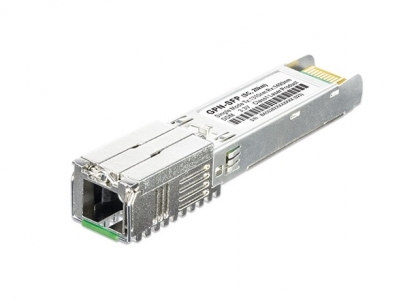

PLANET GPN-SFP on SFP GPON ONU moduuli, joka tukee PON-
siirtonopeuksia 2.5 Gbit/s (lataus) ja 1.25 Gbit/s
(lähetys). Yhdistettynä OLT-jakajaan se tukee jopa 1:128
haaroitussuhdetta enintään 20km matkalla.
GPN-SFP yhdistää perinteisen ONT tai ONU -toiminnallisuudet
kompaktiin SFP-moduuliin. Se on suunniteltu asennettavaksi
suoraan kytkimen, reitittimen, tai teollisuuslaitteen SFP-
paikkaan.
Tekniset tiedot:
• 1x SC/APC type GPON port
• Up to 2.5 Gbit/s downstream and 1.25 Gbit/s upstream
• Maximum distance of up to 20km
• Compliant with ITU-T G.984/988
• SFP feed power input
• Less than 2.5W power consumption
• High-sensitivity optical receiver: -28dBm or better
• Optical TX power: 0..5dBm
• IGMP snooping
• Internet Group Management Protocol (IGMP)
• CTC defined dynamic multicast
• MLD snooping
• Back pressure flow control (half duplex)
• IEEE 802.3x flow control (full duplex)
• Head of Line (HoL) mechanism
• IEEE 802.1p, CoS
• 4 priority queues per port
• WR, SP and FIFO
• Rate limit
• Limitation to the MAC addresses on the port (1K)
• Received Signal Strength Indication (RSSI)
• Multiple Source Agreement (MSA)
• Full Service Access Network (FSAN)
• Dying gasp notification
• ONU Management and Control Interface (OMCI)
Tuoteviittaukset:
| Tuotekoodi | Tuote |
| PLANET-XGS-6311-12X | 12x 10G SFP+ Managed L3, 19" |
| PLANET-GPL-GSFP-C++ | GPON OLT SFP Tranceiver, 4,5-10dBm |
| PLANET-WGS-5225-8P2S | 8x10/100/1000 PoE+ 2xSFP 100/1000 -40...+75C |
| PLANET-GPL-GSFP-C+ | GPON OLT SFP Tranceiver, 3-7dBm |
| PLANET-MGS-6311-8P2X | 8x100/1000/2500T + 2x10G SFP PoE+ 150W |
| PLANET-GT-915A | 10/100/1000BaseT-100/1000 SFP converter |
| PLANET-GPL-8000 | 8 port ONT + 4x TP/SFP + 4x SFP 4x 10GSFP |
| PLANET-IGS-12040MT | 8xGiga+4x100/1000SFP, -40...+75C |
| PLANET-IGS-20160HPT | 16x1000T@16xPoE+, 2xSFP, Managed |
| PLANET-IGS-10020PT | 8xGiga PoE+ 2x SFP, -40...+75C |
