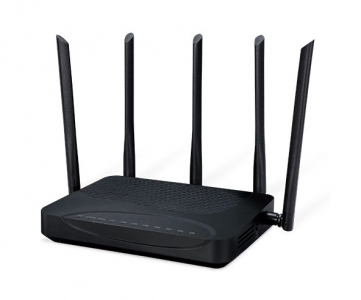

PLANET XGPN-400ACV on XGPON/GPON/EPON Wi-Fi ONU -
päätelaite, joka on varustettu 1x XGPON-portilla, 4x
10/100/1000 Ethernet-portilla ja 1x FXS RJ11-liitännällä
(VoIP tuki).
GPN-400ACV tarjoaa XGPON-kuituyhteyden ansiosta jopa
10Gbit/s latausnopeuden ja 2.5Gbit/s lähetysnopeuden.
Laitetessa on suuren suorituskyvyn 3000M
802.11b/g/n/ac/ax -standardin mukainen monikäyttöinen WiFi-
tukiasema ja siinä on myös USB-portti tiedostojen jakoa
varten (Samba).
Tekniset tiedot:
• 1x SC/UPC type XG-PON port
• 4x 10/100/1000 Mbit/s Gigabit Ethernet ports
• 1x USB A-port
• 1x FSX RJ11 port
• 5x Wi-Fi 6 external antennas
• Up to 2.5 Gbit/s upstream and 10 Gbit/s downstream
• Maximum data transmission of up to 20km
• 128-bit triple DES (3DES) encryption algorithm
• LED indicators for link status
• 802.1Q VLAN, and QoS for virtual LAN tagging and traffic
prioritization
• Broadcast storm protection to prevent and limit broadcast
traffic
• Bandwidth control to manage and allocate network bandwidth
• IGMP snooping/proxy for efficient multicast traffic
management
• IPv4 and IPv6 protocols supported
• Up to 3000 Mbit/s bandwidth
• Compatible with 802.11ax Wi-Fi 6
• Backward compatible with 802.11b/g/n/ac
• Compatible to equipment working on 2.4GHz and 5GHz
• IEEE 802.3x flow control for full-duplex communication
• Queue scheduling algorithms including WRR, Strict
Priority, and FIFO
• IGMP snooping v1/v2/v3
• IGMP proxy function
• Firewall with MAC/IP/Port/URL/Domain filtering
• DDoS attack protection
• Dynamic Bandwidth Allocation (DBA) support
• IEEE 802.3x flow control
• WR, SP, and FIFO queue scheduling algorithms for traffic
management
• Port-based VLAN and IEEE 802.1Q VLAN
• Firewall like MAC/IP/Port/URL/Domain filtering
• DDoS protection to safeguard against distributed denial-
of-service attacks
• Loop detection to prevent network loops
• Dying-gasp mechanism for graceful device shutdown
• Type B dual-homing protection
• Web, TELNET, TR-069, OMCI, and OAM remote management
• Firmware upgrade via TFTP, Web, TR-069, and OLT
• Power Requirements: 12 VDC @ 1.5A max.
• Power Consumption: 7.32W max.
• Dimensions (WxDxH): 185 x 135 x 36mm
• Weight: 494g
• Operating Temperature: 0..+50C
