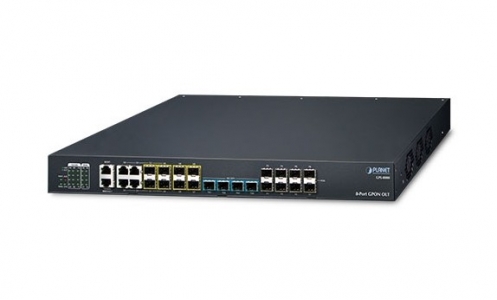

PLANET GPL-8000 on GPON -keskitin, joka on
varustettu 8x GPON OLT SFP -portilla, 4x 10/100/100
Ethernet-portilla, 4x gigabitin TP/SFP-yhdistelmäportilla,
4x gigabitin SFP-portilla, 4x 10 gigabitin SFP+ -portilla,
sekä yhdellä hallintaportilla.
GPL-8000 noudattaa ITU-T G.984/G.988 -standardeja ja täyttää
GPON OLT -päätelaitteiden tekniset vaatimukset
verkkoyhteyksissä. Sen asennus ja ylläpito on helppoa, ja se
mahdollistaa GPON-verkon käyttöönoton jopa 1024 ONU- ja
HGU-laitteelle, tarjoten tehokkaita GPON-ratkaisuja ja
kätevää hallintaa kuituoptiselle laajakaistaverkolle.
Tekniset tiedot:
• 8x GPON OLT SFP slots
• Up to 2.5Gbit/s downstream and 1.25Gbit/s upstream
• Maximum transfer distance of up to 20km
• Each PON port supports up to 128 ONT/HGU
• Compliant with G.984/G.988
• 4x 10/100/1000BASE-T RJ45 copper ports
• 8x 100/1000BASE-X SFP slots
• 4x 10GBASE-SR/LR SFP+ slots
• RJ45 to DB9 console interface for switch basic management
and setup
• One 10/100BASE-TX Management port
• User-friendly GUI management
• 2 control interfaces
- Out-of-Band IP - the management RJ45 port
- In-Band IP - the Gigabit TP, SFP and 10G SFP+ uplink ports
• Supports ONT/HGU authentication; averts illegal ONT access
to network
• ONT/HGU port control
• ONT/HGU VLAN mode
• Supports dynamic routing protocol: RIP and OSPF
• IPv4 static routing
• Routing interface provides per VLAN routing mode
• Supports VLAN
- IEEE 802.1Q tag-based VLAN
- Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
- GVRP for dynamic VLAN management
• Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
• Supports Spanning Tree Protocol
- STP, IEEE 802.1D (Classic Spanning Tree Protocol)
- RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
- MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol,
spanning tree by VLAN)
• Port mirroring to monitor the incoming or outgoing traffic
on a particular port (many to 1)
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)
• Loop protection to avoid broadcast loops
• Link Layer Discovery Protocol (LLDP)
• Ingress shaper and egress rate limit per port bandwidth
control
• 8 priority queues on all switch ports
- IEEE 802.1p CoS/DSCP/Precedence
- VLAN ID
- Policy-based ingress and egress QoS
• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD snooping v1 and v2
• Querier mode support
• MVR (Multicast VLAN Registration)
• Authentication
- IEEE 802.1x port-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS
servers
- RADIUS/TACACS+ users access authentication
• Access Control List
- IP-based Access Control List (ACL)
- MAC-based Access Control List (ACL)
- Time-based ACL
• DHCP Snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid •
MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IPv4 and IPv6 dual stack management
• Switch Management Interfaces
- Console and Telnet Command Line Interface
- HTTP web switch management
- SNMP v1 and v2c switch management
- SSHv2, SSLv3, TLSv1.0 and SNMP v3 secure access
• SNMP Management
- Four RMON groups (history, statistics, alarms, and events)
- SNMP trap for interface Link Up and Link Down notification
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
- Firmware upload/download via HTTP
- Reset button for system reboot or reset to factory default
- Dual images
• DHCP Functions:
- DHCP Relay
- DHCP Option 82
- DHCP Server
• User Privilege levels control
• Network Time Protocol (NTP) and SNTP
• Network Diagnostic
- SFP-DDM (Digital Diagnostic Monitor)
- ICMP remote IP ping
• Syslog remote alarm
• System Log
• Operating Temperature: 0..+50C
• Relative Humidity: 5..90% (non-condensing)
