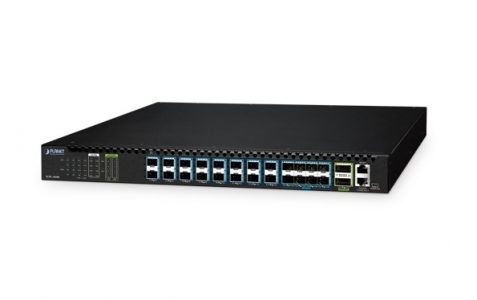

PLANET XGPL-16000 on XGS-PON keskitin, joka on varustettu
16x PON -portilla, 8x 10GBASE-SR/LR SFP+ -portilla, 2x
100Gbit/s QSFP28 -portilla, 10/100BASE-TX RJ45 -
hallintaportilla ja RJ45-RS232 -konsoliportilla.
XGPL-16000 tarjoaa suuren kapasiteetin operaattoritason
kuituyhteysratkaisun. Sen 16 XGS-PON-porttia tukevat 1:256-
jakosuhdetta, mahdollistaen yhteyden jopa 4096 ONU
päätelaitteeseen yhden keskittimen avulla. 100Gbit/s
uplink-yhteyden ansiosta laite takaa luotettavan yhteyden
monenlaisille palveluille - aina 4K/8K-videoiden
suoratoistosta, IPTV:stä ja VoIP:stä aina IP-valvontaan,
turvalliseen tiedonsaantiin ja saumattomaan yritysverkkoon
erilaisissa liiketoimintaympäristöissä.
Tekniset tiedot:
• 16x XGS-PON OLT SFP+ slots, backward compatible with XG-
PON and GPON transceivers
• Up to 10Gbit/s symmetric downstream and upstream
• Maximum transmission distance of up to 20km
• Each PON port supports up to 256 ONT/HGU
• Compliant with ITU-T G.9807, G.987 and G.988
• 8x 10GBASE-SR/LR SFP+ slots
• 2x 40G/100G QSFP28 uplink slots
• 1x RJ45 to DB9 console interface for system setup and
management
• 1x 10/100BASE-TX out-of-band management port
• User-friendly CLI, Telnet, and SNMP management
• 2 control interfaces:
- Out-of-Band IP - via dedicated management port
- In-Band IP - via SFP+ and QSFP28 uplinks
• Supports ONT/HGU authentication to prevent unauthorized
ONU access
• ONU/ONT port control
• VLAN configuration per ONT
• Supports DBA (Dynamic Bandwidth Allocation)
• SLA (Service Level Agreement) per ONU
• Supports dynamic routing protocol: RIP and OSPF
• IPv4 static routing
• Routing interface provides per VLAN routing mode
• Supports VLAN
- IEEE 802.1Q tag-based VLAN
- Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
- GVRP for dynamic VLAN management
• Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
• Supports Spanning Tree Protocol
- STP, IEEE 802.1D (Classic Spanning Tree Protocol)
- RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
- MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol,
spanning tree by VLAN)
• Port mirroring to monitor the incoming or outgoing traffic
on a particular port (many to 1)
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)
• Loop protection to avoid broadcast loops
• Link Layer Discovery Protocol (LLDP)
• Ingress shaper and egress rate limit per port
• 8x priority queues per port
- IEEE 802.1p CoS
- VLAN ID priority
- DSCP/Precedence
• Policy-based QoS on ingress/egress
• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD snooping v1 and v2
• Querier mode support
• MVR (Multicast VLAN Registration)
• Authentication
- IEEE 802.1x port-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS
servers
- RADIUS/TACACS+ users access authentication
• Access Control List
- IP-based Access Control List (ACL)
- MAC-based Access Control List (ACL)
- Time-based ACL
• DHCP Snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid
MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IPv4 and IPv6 dual stack management
• Switch Management Interfaces
- Console and Telnet Command Line Interface
- HTTP web switch management
- SNMP v1 and v2c switch management
- SSHv2, SSLv3, TLSv1.0 and SNMP v3 secure access
• SNMP Management
- Four RMON groups (history, statistics, alarms, and events)
- SNMP trap for interface Link Up and Link Down notification
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
- Firmware upload/download via HTTP
- Dual images
• DHCP Functions:
- DHCP Relay
- DHCP Option 82
- DHCP Server
• User Privilege levels control
• Network Time Protocol (NTP) and SNTP
• Network Diagnostic
- SFP-DDM (Digital Diagnostic Monitor)
- ICMP remote IP ping
• Syslog remote alarm
• System Log
• Operating Temperature: 0..+50 C
• Relative Humidity: 5..90% (non-condensing)
