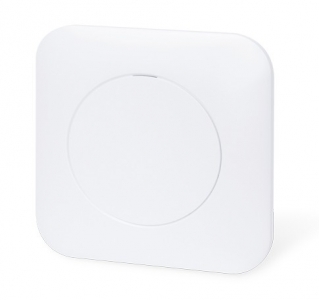

PLANET WDAP-C5100BE on korkean suorituskyvyn Wi-Fi 7 (IEEE
802.11be) -tukiasema, joka tarjoaa huippunopean 5100 Mbit/s
langattoman yhteyden esimerkiksi yritysverkkoihin,
konferenssikeskuksiin ja julkisiin tiloihin.
WDAP-C5100BE hyödyntää MLO-teknologiaa, joka mahdollistaa
tiedonsiirron useilla taajuuksilla samanaikaisesti,
vähentäen latenssia ja parantaen kaistanleveyden
hyödyntämistä. Lisäksi PoE+ (IEEE 802.3at) -tuki
mahdollistaa laitteen virtasyötön Ethernet-kaapelin kautta,
helpottaen asennusta ja vähentäen kaapelointitarvetta.
Tekniset tiedot:
• Compliant with the IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
wireless technology
• 1x 10/100/1000/2500 Mbit/s WAN/PoE RJ45 port
• 1x 10/100/1000 Mbit/s LAN RJ45 port, supporting auto-
negotiation and auto MDI/MDI-X for seamless connectivity
• A state-of-the-art Wi-Fi 7 architecture with advanced MIMO
technology
• Up to 5100 Mbit/s (approximately 689 Mbit/s at 2.4 GHz and
4324 Mbit/s 5 GHz) with 4K-QAM (4096-QAM) encoding for
boosted throughput
• Flexible operation modes (AP, Gateway, and Repeater) for
diverse deployment needs
• Wi-Fi Multimedia (WMM) for superior streaming quality
• A real-time channel analyzer for channel utilization, and
seamless roaming with 802.11k/v/r for uninterrupted
connectivity
• Dynamic coverage thresholds for further weak signal
interference reduction to maintain stable sessions
• Comprehensive wireless security with WPA3-PSK, WPA2-PSK,
WPA/WPA2 Enterprise, and 802.1X RADIUS authentication
• VLAN support with SSID to VLAN mapping, along with
• IP/Port/MAC filtering, DoS protection, and SPI firewall
features for robust network safeguarding
• Customizable configurations such as DMZ, port forwarding,
and per IP bandwidth control for consistent performance in
high density deployments
• PLANET AP Controllers in AP mode.
• Self-healing mechanism through system auto reboot setting
• System status monitoring via remote syslog servers,
combined with support for PLANET DDNS/Easy DDNS, Captive
• Portal, and RADIUS Server/Client in Gateway mode, to
streamline management.
• PLANET Smart Discovery Utility, PLANET NMS system, and
CloudViewerPro app for centralized, efficient deployment
management.
• Dimensions (WxDxH): 220 x 225 x 42.5 mm
• Weight: 628g
• Power Requirements: 48VDC @ 0.5A, IEEE 802.3at PoE+
(WAN/PoE was changed port). 12VDC @ 1.5A from DC Jack
(5.5 x 2.1mm)
• Power Consumption: 15W
• Operating Temperature: -10..+50C
