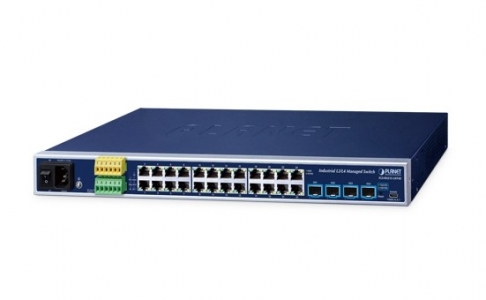

PLANET IGS-R4215-24T4X on teollisuuskäyttöön suunniteltu
hallittu Ethernet -kytkin, joka tarjoaa 24x
10/100/1000BASE-T RJ45 -porttia ja 4x 10GBASE-X SFP+ -
porttia.
IGS-R4215-24T4X on suunniteltu vaativiin
teollisuusympäristöihin ja sen erinomainen lämpötilan
sietokyky takaa luotettavan toiminnan haastavissakin
olosuhteissa. Kytkin tukee IPv6/IPv4-dual stack -hallintaa,
Layer 3 -tason staattista reititystä, sekä Ethernet Ring
Protection Switching (ERPS) -teknologiaa, joka mahdollistaa
nopean verkon palautumisen vikatilanteissa. Lisäksi
laitteessa on kaksi digitaalista sisääntuloa ja kaksi
ulostuloa, jotka mahdollistavat mm. ulkoisten
hälytyssensorien hallinnan.
Tekniset tiedot:
• 24x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
• 4x 10GBASE-SR/LR SFP+ slots, backward compatible with
100/1G/2.5GBASE-X SFP transceivers
• 1x USB Type C console interface for basic management and
setup
• One 100..240VAC or dual 24 to 60VDC power input,
redundant power with reverse polarity protection
- Active-active redundant power failure protection
- Backup of catastrophic power failure on one supply
- Fault tolerance and resilience
• 19" rack-mountable design
• IP30 metal case
• Supports EFT protection for 6kVDC power and 6kVDC Ethernet
ESD protection
• -40...+75C operating temperature for DC power input
• -10...+60C operating temperature for AC power input
• 2x digital input (DI)
• 2x digital output (DO)
• Integrate sensors into auto alarm system
• Transfer alarm to IP network via SNMP trap
• Hardware-based 10/100Mbit/s (half/full duplex), 1000Mbit/s
(full duplex mode), auto-negotiation, and auto MDI/MDI-X
• Features Store-and-Forward mode with wire-speed filtering
and forwarding rates
• IEEE 802.3x flow control for full duplex operation and
back pressure for half duplex operation
• 16k MAC address table size
• 12k jumbo frame
• Automatic address learning and address aging
• Supports CSMA/CD protocol
• Supports maximum 32 static routes and route summarization
• Routing interface provides per VLAN routing mode
• Prevents packet loss with back pressure (half-duplex) and
IEEE 802.3x pause frame flow control (full-duplex)
• High performance Store and Forward architecture, broadcast
storm control, and runt/CRC filtering that eliminates
erroneous packets so as to optimize the network bandwidth
• Supports VLAN
- IEEE 802.1Q tagged VLAN
- Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) support
- Protocol VLAN
- Voice VLAN
- Private VLAN (Protected port)
- Management VLAN
- GVRP
• Supports Spanning Tree Protocol
- STP (Spanning Tree Protocol)
- RSTP (Rapid Spanning Tree Protocol)
- MSTP (Multiple Spanning Tree Protocol)
- STP BPDU Guard, BPDU Filtering and BPDU Forwarding
• Supports Link Aggregation
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (Static Trunk)
- Maximum 8 trunk groups, up to 8 ports per trunk group
• Provides port mirror (many-to-1)
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Link Layer Discovery Protocol (LLDP)
• Ingress/Egress Rate Limit per port bandwidth control
• Traffic classification
- IEEE 802.1p CoS
- TOS/DSCP/IP Precedence of IPv4/IPv6 packets
• Strict priority and Weighted Round Robin (WRR) CoS
policies
• Supports IPv4 IGMP snooping v2 and v3
• Supports IPv6 MLD snooping v1, v2
• IGMP querier mode support
• IGMP snooping port filtering
• MLD snooping port filtering
• Storm Control support
- Broadcast / Multicast / Unknown Unicast
• Authentication
- Built-in RADIUS client to co-operate with the RADIUS
servers
- DHCP Option 82
- RADIUS/TACACS+ login user access authentication
• Access Control List
- IPv4/IPv6 IP-based ACL
- IPv4/IPv6 IP-based ACE
- MAC-based ACL
- MAC-based ACE
• MAC Security
- Static MAC
- MAC Filtering
• Port Security for Source MAC address entries filtering
• DHCP Snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid
MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• DoS Attack Prevention
• IPv4 and IPv6 dual stack management
• Switch Management Interface
- Web switch management
- Console/Telnet Command Line Interface
- SNMP v1 and v2c switch management
- SSHv2, TLSv1.2 and SNMP v3 secure access
• SNMP Management
- SNMP trap for interface Link Up and Link Down notification
- Four RMON groups (history, statistics, alarms, and events)
• User Privilege Levels Control
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
- Firmware upload/download via HTTP/TFTP
- Configuration upload/download through HTTP/TFTP
- Dual Images
- Hardware reset button for system reboot or reset to
factory default
• SNTP Network Time Protocol
• Network Diagnostic
- Cable Diagnostics
- ICMPv6/ICMPv4 Remote Ping
- SFP-DDM (Digital Diagnostic Monitor)
• Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
• Event message logging to remote Syslog server
• PLANET Smart Discovery Utility for deployment management
• PLANET NMS system and NMSViewerPro/CloudViewerPro App for
deployment management
• Enclosure: IP30 metal case
• Dimensions (WxDxH): 444 x 200 x 44.2mm, 1U height
• Weight: 2826g
• Power Requirements: 24..60VDC, 1.5A (max.), 100..240VAC,
50/60Hz, 1A (max.)
• Power Consumption/ Dissipation DC:
- Max. 7.86 watts / 26.82 BTU (system on)
- Max. 24.06 watts / 82.1 BTU (Full loading)
• Power Consumption/ Dissipation AC:
- Max. 6.9 watts / 23.54 BTU (system on)
- Max. 19.3 watts / 65.85 BTU (Full loading)
• Operating Temperature: -10..+60C for AC power input
• Operating Temperature: -40..+75C for DC power input
• Operating Relative Humidity: 5..95% (non-condensing)
