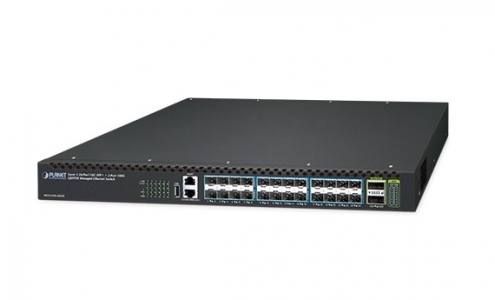

PLANET XGS-6350-24X2C on hallittava Layer 3 -tason kytkin,
jossa on 24x 10GBASE-SR/LR SFP+ -porttia, 2x 100G QSFP28 -
porttia, sekä RJ45-to-DB9 serial -portti, hallintaportti ja
USB.
GS-6350-24X2C sopii yritysverkkoihin, palveluntarjoajille ja
kampusympäristöihin tarjoten 1.2Tbit/s kytkentäkapasiteetin
ja IPv4/IPv6-reitityksen. 100G QSFP28 -tuki varmistaa
erittäin suuren kaistanleveyden, ja laitteen
kyberturvallisuusominaisuudet, kuten SSH- ja TLS-
protokollat, suojaavat verkkoa kehittyneiltä uhkilta.
Tekniset tiedot:
• 24x 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-
SX/LX/BX SFP
• 2x QSFP28 slots with each having native 100 Gigabit
Ethernet, 40G and 4 10 Gigabit Ethernet ports
• 1x RJ45 to DB9 console interface for switch basic
management and setup
• 1x MNG port for HTTP server access
• 1x USB port
• Static Routing, RIP v1/v2, OSPF and BGP
• Policy Routing
• BFD for OSPF and BGP
• ICMPv6, DHCPv6, ACLv6,IPv6 Telnet
• IPv6 Neighbor Discovery
• Path MTU Discovery
• MLD and MLD Snooping
• IPv6 Static Routing, RIPng, OSPFv3 and BGP4+
• Manual Tunnel, ISATAP Tunnel and 6-to-4 Tunnel
• Supports Multicast Routing Protocols:
• PIM-DM (Protocol Independent Multicast - Dense Mode)
• PIM-SM (Protocol Independent Multicast - Sparse Mode)
• PIM-SSM (Protocol Independent Multicast - Source-Specific
Multicast Mode)
• Supports IGMP v1/v2/v3
• Auto-MDI/MDI-X detection on each RJ45 port
• Prevents packet loss flow control
- IEEE 802.3x pause frame flow control in full-duplex mode
- Back-pressure flow control in half-duplex mode
• High performance Store-and-Forward architecture, broadcast
storm control, port loopback detect
• 132KC MAC address table, automatic source address learning
and aging
• Supports VLAN
- IEEE 802.1Q tag-based VLAN
- GVRP for dynamic VLAN management
- Up to 4094 active VLANs
- Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
- Private VLAN Edge (PVE) supported
- GVRP protocol for Management VLAN
- Protocol-based VLAN
- MAC-based VLAN
• Supports Link Aggregation
- Maximum 32 trunk groups with up to 8 ports per trunk group
- IEEE 802.3ad LACP (Link Aggregation Control Protocol)
- Cisco ether-channel (static trunk)
• Supports Spanning Tree Protocol
- STP, IEEE 802.1D (Classic Spanning Tree Protocol)
- RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
- MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol,
spanning tree by VLAN)
- BPDU & root guard
• Port mirroring to monitor the incoming or outgoing traffic
on a particular port (many to many)
• Provides port mirror (many-to-1)
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)
• 8 priority queues on all switch ports
• Supports strict priority and WRR (Weighted Round Robin)
CoS policies
• Traffic classification
- IEEE 802.1p CoS/ToS
- IPv4/IPv6 DSCP
- Port-based WRR
• Strict priority and WRR CoS policies
• Supports IPv4 IGMP snooping v1, v2 and v3; and IPv6 MLD v1
and v2 snooping
• Querier mode supports
• Supports Multicast VLAN Register (MVR)
• Authentication
- IEEE 802.1x port-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS
servers
- RADIUS/TACACS+ users access authentication
- Change of Authorization (COA)
• Access Control List
- IP-based Access Control List (ACL)
- MAC-based Access Control List (ACL)
- Port-based Access Control List (ACL)
- Time-based ACL
• DHCP Snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid
MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IPv4 and IPv6 dual stack management
• Switch Management Interfaces
- Console and Telnet Command Line Interface
- HTTP web switch management
- SNMP v1 and v2c switch management
- SSHv2, SSLv3, TLSv1.3 and SNMP v3 secure access
• SNMP Management
- Four RMON groups (history, statistics, alarms, and events)
- SNMP trap for interface Link Up and Link Down notification
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
- Firmware upload/download via HTTP
- Reset button for system reboot or reset to factory default
- Dual images
• DHCP Functions:
- DHCP Relay
- DHCP Option 82
- DHCP Server
• User Privilege levels control
• Network Time Protocol (NTP)
• Network Diagnostic
- SFP-DDM (Digital Diagnostic Monitor)
- ICMP remote IP ping
• Syslog remote alarm
• System Log
• Supports ping, trace route function for IPv4 and IPv6
• PLANET Smart Discovery Utility for deployment management
• Virtualized multiple XGS-6350-24X2C switches integrated
into one logical device
• Single IP address stack management, supporting up to 10
hardware units stacked together
• Stacking architecture supports redundant Ring mode
• Dimensions (WxDxH): 442.5 x 300.1 x 44.6mm
• Weight: 5716g
• Power Consumption: 50.5W / 172BTU (maximum)
• Power Requirements: 100..240VAC, 50/60Hz
• Fan: 4
• Operating Temperature: 0..+50C
