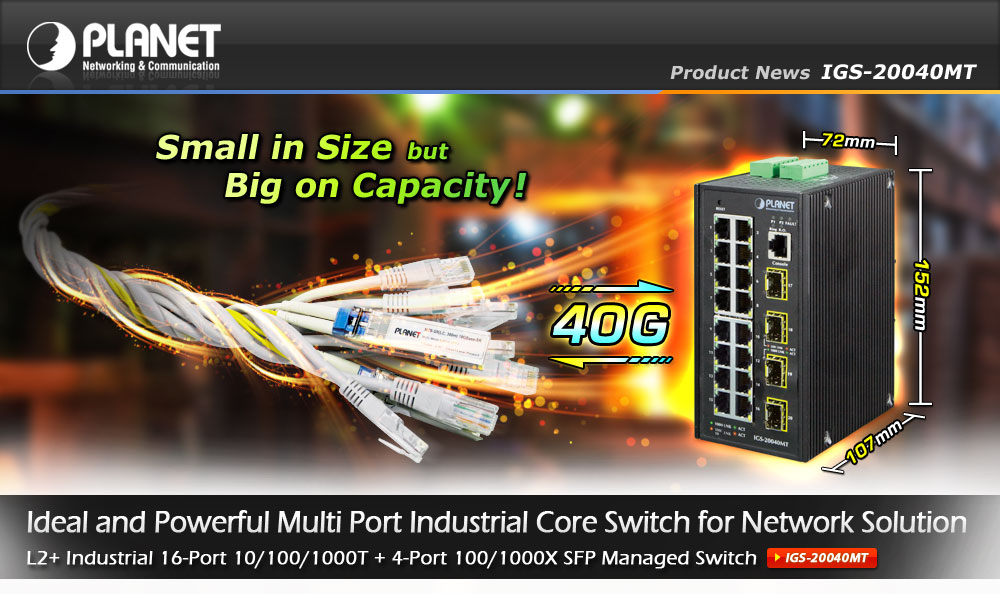

PLANET tuoteuutinen: IGS-20040MT
16-porttinen hallittava teollisuuskytkin 4x SFP-paikalla
Julkaistu: 01.10.2014
|
 |
High-Density, Full-Gigabit Performance
PLANET IGS-20040MT is the smallest 20-port Gigabit Managed
Switch in the industrial networking industry. With IP30 rugged but
compact-sized case protection, it can operate stably under the
temperature range from -40 to 75 degrees C and can be installed in any
difficult environment without space limitation. It also provides
user-friendly yet advanced IPv6/IPv4 management interfaces and abundant L2/L4 switching functions.
With the 4 dual-speed SFP fiber slots, it can be flexibly applied to
extend the connection distance, thus increasing the network elasticity
and performance. Redundant Ring, Fast Recovery for Critical Network Applications
The IGS-20040MT incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching), RSTP/MSTP Spanning Tree Protocol, Loop protection, and redundant power
input system (12 to 48V DC or 24V AC) to prevent interruptions and
protect customer's critical network connectivity with rapid switching
recovery capability and uptime in harsh environments. 1588 Time Protocol for Industrial Computing Networks
The IGS-20040MT is intended for Telecom and Carrier Ethernet
applications, supporting MEF service delivery and timing over packet
solutions for IEEE 1588 and synchronous Ethernet.
|
|
 |
-40 to 75 degrees C operating temperature |
 |
2 x Digital Input, 2 x Digital Output |
 |
12 ~ 48V DC, 24V AC redundant power design |
 |
IP30 aluminum case; DIN rail and wall-mount design |
 |
Supports Precision Time Protocol Transparent mode |
 |
ERPS Ring Data Recovery time < 50ms |
|
|
 |
|
|
|
|
|
 |
|
