Tuoteuutuudet - PLANET - ICS-2100
|
|
|
|
|
|
|
Reliable Environment for Serial over Ethernet
|
|
|
|
Cost Effective Solution for RS-232 / RS-422 / RS-485 to Industrial Ethernet Application
PLANET ICS-2100 Smart Media Converter / Device Server offer conversion of serial RS-232 / RS-422 / RS-485 communication to Industrial Fast Ethernet networking. It allows serial and Ethernet communications to connect efficiently and inexpensively. The ICS-2100 is a time-saving and cost-effective solution for user and SI to quickly transform its serial equipments to the Ethernet network with no need of replacing the existing Serial equipment and software system.
Stable Performance under Difficult Environments
The ICS-2100 provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The feature of operating temperature range from -10 to 60 Degree C allows the ICS-2100 to be placed in almost any difficult environment.
The ICS-2100 equip with compact, IP-30 standard metal case that allows either DIN rail or wall mounting for efficient use of cabinet space. The ICS-2100 also provides an integrated power supply source with wide range of voltages (12 to 48V DC) ideally suitable for worldwide operation with high availability applications requiring dual or backup power inputs.
|
|
|
|
|
|
|
|
|
|
|
Cost effective for RS-232/ RS-422/ RS-485 to Ethernet application
|
|
|
Standard TCP/IP interface and versatile operation modes
|
|
|
Built-in IP-Based Web interface for remote management
|
|
|
IP-30 Metal case protection
|
|
|
12 to 48V DC, Redundant power with polarity reverse protect function and connective removable terminal block for master and slave power
|
|
|
-10 to 60 Degree C operation temperature
|
|
|
|
|
|
|

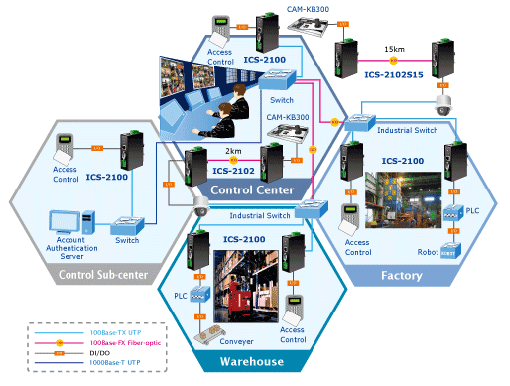

Access Control System - traditional installation
|
|
Most of the enterprises and government use access control plate and Mifare or RFID to authorize entrance identity. Traditionally, access control machines use RS-232 or RS-485 serial interface and their cables connect to login server. By connecting to ICS-2100 Serial over Ethernet Converter, the access control machine is able to extend the network over longer distances via fiber optical interface. Via Ethernet connectivity, the distance is not limited in a local range. In other way, the ICS-2100 can be linked to a xDSL router to get the internet access capability so that the access control can be set and monitored over the internet.
|
|
|
|
|
|
